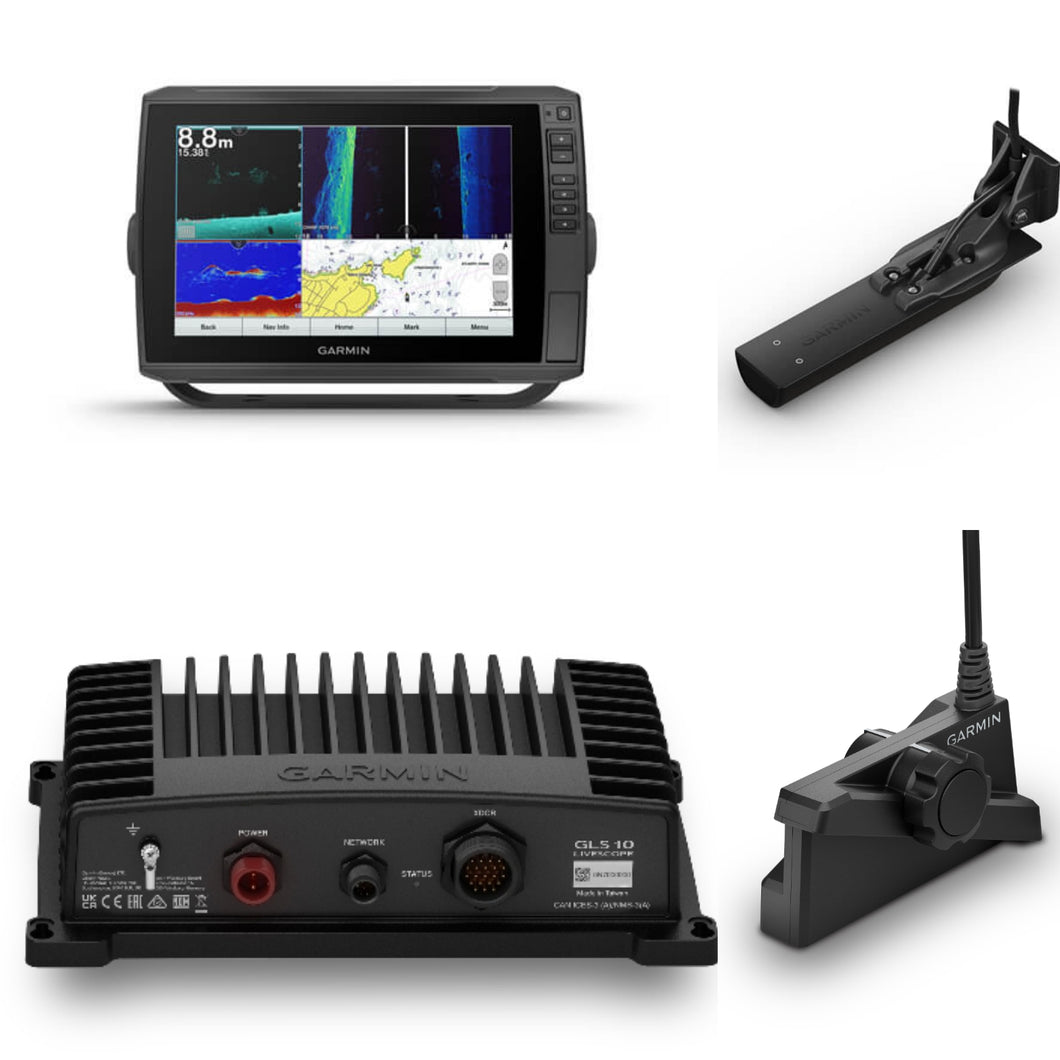

What do you get in this LiveScope Plus bundle?
- Chartplotter - Garmin ECHOMAP ULTRA 102sv
- GT56UHD-TM - This is the 'latest and greatest' from Garmin in their Ultra High Definition Clearvu and Downvu sonar technology - includes the traditional chirp sonar.
- LiveScope Plus LVS 34 System - Within the 'System' you receive the GLS10 aka 'Black Box' and the new LVS34 Transducer.
Please note the LVS34 System includes it's own perspective mode mount.
ECHOMAP ULTRA 102sv
ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING
The sunlight-readable 10 inch touchscreen chartplotter/sonar combo features our worldwide basemap, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.
The keyed-assist 10 inch touchscreen puts fishfinding know-how at your fingertips.
See crisp images of structure and fish in stunning detail.
Navigate confidently with optional BlueChart® g3 charts (sold separately).
Manage your marine experience from nearly anywhere with the ActiveCaptain® app1.
Connect your boat to share data, sonar and charts with your other compatible devices.
Explore your new favourite spot; create maps on the fly, and tailor them to fit your needs.
LIVESCOPE™ SONAR SUPPORT
ECHOMAP Ultra 102sv supports a variety of Garmin transducers, including Panopix LiveScope LVS12, LVS32 and LVS34 - LVS34 included but others sold separately
BUILT-IN UHD SONAR
The included GT56 transducer provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.
VIVID COLOUR PALETTES
High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.
ADD CHARTS
Experience unparalleled coverage and detail with optional charts with integrated Navionics® data and Auto Guidance2 technology.
QUICKDRAW CONTOURS
Create personalised fishing maps on-screen with a 0.3 metre contours. Keep the data to yourself, or share it with the Garmin Quickdraw Community on the Garmin Connect™ app
NETWORK CAPABLE
If you have multiple compatible ECHOMAP Ultra 10 and 12 inch units or UHD 7 and 9 inch units on your boat, you can share information — such as sonar, user data and charts — among them.
ACTIVECAPTAIN APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin QuickDraw Community data and more
NMEA 2000® NETWORK COMPATIBILITY
Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.
FORCE™ TROLLING MOTOR COMPATIBILITY
Take control of the most powerful and efficient trolling motor available, route it to waypoints, follow tracks and more from the screen of your chartplotter.
TAKE IT WITH YOU
Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.
GT56UHD-TM
ULTRA HIGH-DEFINITION CLEARVÜ SCANNING SONAR
Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element.
ULTRA HIGH-DEFINITION SIDEVÜ SCANNING SONAR
See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has 20% greater range at 1,000 kHz, so you can see even farther than before.
HIGH WIDE CHIRP TRADITIONAL SONAR
Experience remarkably clear target separation and definition up to 244 m (800 feet) below your boat.
MULTIPLE SCANNING SONAR FREQUENCIES
Use the perfect frequency for the waters you’re fishing. This transducer delivers 455 kHz, 800 kHz and 1,000 kHz for top performances at all depths.
VIVID COLOUR PALETTES
High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.
MOUNTING OPTIONS
Everyone’s setup is different. That’s why we’ve included transom and trolling motor mounting hardware.
LVS34 LiveScope Plus System
The best of the best just got better with the LiveScope Plus System!
It’s the latest in LiveScope technology, offering improved resolution, reduced noise, clearer images and better target separation. Now it’s easier than ever to see structure, bait and fish swimming around your boat in real time. Adjust the transducer to fit where you fish;
- Forward mode shows what’s out in front of your boat and slightly below
- Down mode gives you a view of what’s directly below
- Perspective mode is great for a top-down view
The view automatically changes on your compatible Garmin chartplotter* screen. Attitude heading reference system stabilisation keeps your sonar view steady, even in rough conditions.
LiveScope Plus includes a trolling motor shaft and barrel mounts plus Perspective Mode Mount.
Features
- Live sonar images with improved screen clarity, increased transducer sensitivity and better target separation
- Sharper images with reduced noise and fewer sonar artifacts that impede a clear picture of fish and structure
- New transducer can be used with existing LiveScope™ System black box (GLS™ 10) for easy upgrade
- Vivid colour palettes for enhanced detail and clarity
- Supports Forward, Down and Perspective mode with all necessary mounts included in the box
